基于Spartan-6的FPGA SP601開發設計方案

Spartan-6是Xilinx公司的FPGA批量應用有最低成本的FPGA,采用45nm低功耗銅工藝,在成本,性能和功耗上有最好的平衡.該系列共有13個產品, 邏輯單元從3,840 到147,443, 有廣泛的用途.本文介紹了Spartan-6 FPGA主要特性,以及在汽娛樂系統應用框圖, 平板顯示器應用框圖和視頻監視系統應用框圖,SP601開發套件主要特性和詳細電路圖.

The Spartan?-6 family provides leading system integration capabilities with the lowest total cost for high-volume applications. The thirteen-member family delivers expanded densities ranging from 3,840 to 147,443 logic cells, with half the power consumption of previous Spartan families, and faster, more comprehensive connectivity. Built on a mature 45 nm low-power copper process technology that delivers the optimal balance of cost, power, and performance, the Spartan-6 family offers a new, more efficient, dual-register 6-input lookup table (LUT) logic and a rich selection of built-in system-level blocks. These include 18 Kb (2 x 9 Kb) block RAMs, second generation DSP48A1 slices, SDRAM memory controllers, enhanced mixed-mode clock management blocks, SelectIO? technology, poweroptimized high-speed serial transceiver blocks, PCI Express? compatible Endpoint blocks, advanced system-level power management modes, auto-detect configuration options, and enhanced IP security with AES and Device DNA protection. These features provide a lowcost programmable alternative to custom ASIC products with unprecedented ease of use. Spartan-6 FPGAs offer the best solution for
high-volume logic designs, consumer-oriented DSP designs, and cost-sensitive embedded applications. Spartan-6 FPGAs are the programmable silicon foundation for Targeted Design Platforms that deliver integrated software and hardware components that enable designers to focus on innovation as soon as their development cycle begins.

Spartan-6 FPGA主要特性:

? Spartan-6 Family:

? Spartan-6 LX FPGA: Logic optimized

? Spartan-6 LXT FPGA: High-speed serial connectivity

? Designed for low cost

? Multiple efficient integrated blocks

? Optimized selection of I/O standards

? Staggered pads

? High-volume plastic wire-bonded packages

? Low static and dynamic power

? 45 nm process optimized for cost and low power

? Hibernate power-down mode for zero power

? Suspend mode maintains state and configuration with multi-pin wake-up, control enhancement

? Lower-power 1.0V core voltage (LX FPGAs, -1L only)

? High performance 1.2V core voltage (LX and LXT FPGAs, -2, -3, and -4 speed grades)

? Multi-voltage, multi-standard SelectIO? interface banks

? Up to 1,050 Mb/s data transfer rate per differential I/O

? Selectable output drive, up to 24 mA per pin

? 3.3V to 1.2V I/O standards and protocols

? Low-cost HSTL and SSTL memory interfaces

? Hot swap compliance

? Adjustable I/O slew rates to improve signal integrity

? High-speed GTP serial transceivers in the LXT FPGAs

? Up to 3.125 Gb/s

? High-speed interfaces including: Serial ATA, Aurora, 1G Ethernet, PCI Express, OBSAI, CPRI, EPON, GPON, DisplayPort, and XAUI

? Integrated Endpoint block for PCI Express designs (LXT)

? Low-cost PCI? technology support compatible with the 33 MHz, 32- and 64-bit specification.

? Efficient DSP48A1 slices

? High-performance arithmetic and signal processing

? Fast 18 x 18 multiplier and 48-bit accumulator

? Pipelining and cascading capability

? Pre-adder to assist filter applications

? Integrated Memory Controller blocks

? DDR, DDR2, DDR3, and LPDDR support

? Data rates up to 800 Mb/s (12.8 Gb/s peak bandwidth)

? Multi-port bus structure with independent FIFO to reduce design timing issues

? Abundant logic resources with increased logic capacity

? Optional shift register or distributed RAM support

? Efficient 6-input LUTs improve performance and minimize power

? LUT with dual flip-flops for pipeline centric applications

? Block RAM with a wide range of granularity

? Fast block RAM with byte write enable

? 18 Kb blocks that can be optionally programmed as two independent 9 Kb block RAMs

? Clock Management Tile (CMT) for enhanced performance

? Low noise, flexible clocking

? Digital Clock Managers (DCMs) eliminate clock skew and duty cycle distortion

? Phase-Locked Loops (PLLs) for low-jitter clocking

? Frequency synthesis with simultaneous multiplication, division, and phase shifting

? Sixteen low-skew global clock networks

? Simplified configuration, supports low-cost standards

? 2-pin auto-detect configuration

? Broad third-party SPI (up to x4) and NOR flash support

? Feature rich Xilinx Platform Flash with JTAG

? MultiBoot support for remote upgrade with multiple bitstreams, using watchdog protection

? Enhanced security for design protection

? Unique Device DNA identifier for design authentication

? AES bitstream encryption in the larger devices

? Faster embedded processing with enhanced, low cost, MicroBlaze? soft processor

? Industry-leading IP and reference designs

Spartan-6 FPGA 器件列表:



Spartan-6 FPGAs store the customized configuration data in SRAM-type internal latches. The number of configuration bits is between 2.6 Mb and 33 Mb depending on device size but independent of the specific user-design implementation, unless compression mode is used. The configuration storage is volatile and must be reloaded whenever the FPGA is powered up.

This storage can also be reloaded at any time by pulling the PROGRAM_B pin Low. Several methods and data formats for loading configuration are available.

Bit-serial configurations can be either master serial mode, where the FPGA generates the configuration clock (CCLK) signal, or slave serial mode, where the external configuration data source also clocks the FPGA. For byte-wide configurations, master SelectMAP mode generates the CCLK signal while slave SelectMAP mode receives the CCLK signal for the 8- and 16-bit-wide transfer. In master serial mode, the beginning of the bitstream can optionally switch the clocking source to an external clock, which can be faster or more precise than the internal clock. The available JTAG pins use boundary-scan protocols to load bit-serial configuration data.


圖1.Spartan-6 FPGA在汽娛樂系統應用框圖

Serving as a companion to the host processor, a single Spartan-6 LX45T FPGA supports audio/video acceleration, graphics subsystem, and vehicle networking functions.

圖2.Spartan-6 FPGA在平板顯示器應用框圖

High-Resolution Video Flat-Panel Display with Dynamic Backlight Control
Achieve higher image quality while reducing power and cost using Spartan-6 FPGAs withintegrated serial I/O capabilities.


圖3.Spartan-6 FPGA在視頻監視系統應用框圖

Surveillance Image Capture and Analytics Engine
Integrate sensor interfacing, video analytics, image enhancement and network interfacing in a single Spartan-6 LX150T FPGA.

The Spartan?-6 family provides leading system integration capabilities with the lowest total cost for high-volume applications. The thirteen-member family delivers expanded densities ranging from 3,400 to 148,000 logic cells, with half the power consumption of previous Spartan families and faster, more comprehensive connectivity.

Built on a mature 45 nm low-power copper process technology that delivers the optimal balance of cost, power, and performance, the Spartan?-6 family offers a new, more efficient, dual-register 6-input look-up table (LUT) logic and a rich selection of built-in system-level blocks. These include 18 Kb block RAMs, second generation DSP48A1 slices, SDRAM memory controllers, enhanced mixed-mode clock management blocks,SelectIO? technology, power-optimized high-speed serial transceiver blocks, PCI　Express? compatible Endpoint blocks, advanced system-level power management　modes, autodetect configuration options, and enhanced IP security with AES and Device　DNA protection. These features provide a low-cost programmable alternative to custom ASIC products with unprecedented ease-of-use. Spartan?-6 FPGAs are the programmable silicon foundation for Targeted Design Platforms that deliver integrated software and hardware components to enable designers to focus on innovation as soon as their development cycle begins.

SP601評估套件

The SP601 Evaluation Kit is based on the XC6SLX16-2CSG324 Spartan-6 FPGA. This FPGA contains 14,579 logic cells, a rating that reflects the increased logic capacity offered by the new six-input LUT architecture.

SP601評估套件主要特性:

The SP601 designs demonstrate Spartan-6 FPGA features using the SP601 evaluation
board. These features include:

? DDR2 component

? SPI x4 Flash and headers

? Linear BPI Flash

? 10/100/1000 Ethernet PHY

? RS232 UART (USB Bridge)

? IIC

? 200 MHz differential clock, 27 MHz socketed oscillator, clock SMA connectors

? VITA 57.1 FMC-LPC connector

? LEDs

? DIP switch

? Pushbuttons

? 12-pin (8 I/O) header

? USB JTAG

? Onboard power

圖4. SP601評估套件框圖

圖5. SP601評估套件外形圖

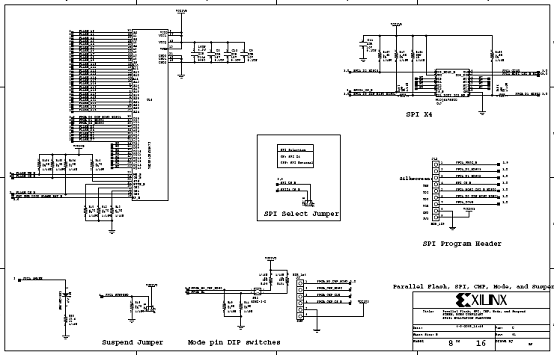

圖6. SP601評估板電路圖(1)

圖7. SP601評估板電路圖(2)

圖8. SP601評估板電路圖(3)

圖9. SP601評估板電路圖(4)

圖10. SP601評估板電路圖(5)

圖11. SP601評估板電路圖(6)

圖12. SP601評估板電路圖(7)

圖13. SP601評估板電路圖(8)

圖14. SP601評估板電路圖(9)

圖15. SP601評估板電路圖(10)

圖16. SP601評估板電路圖(11)

圖17. SP601評估板電路圖(12)

圖18. SP601評估板電路圖(13)

圖19. SP601評估板電路圖(14)

圖20. SP601評估板電路圖(15)

圖21. SP601評估板電路圖(16)
